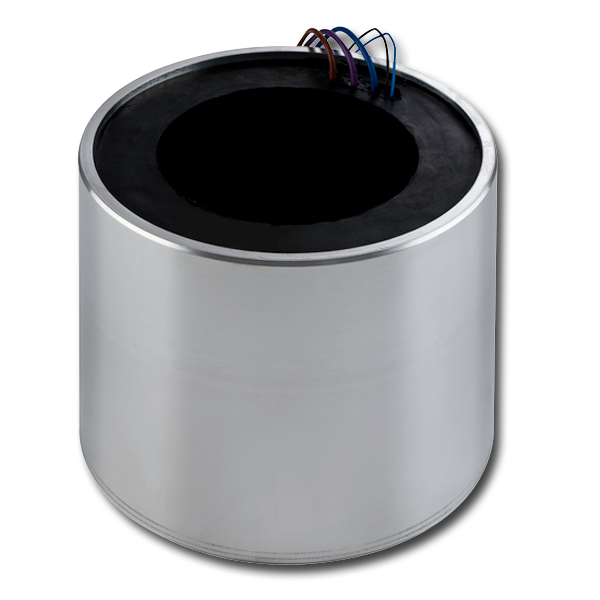

KBM™ Series Frameless Motors

The KBM™ Series provides low- and high-voltage motors (120–480 Vac) designed to be directly embedded in your machine using the machine’s own bearings to support the rotor. With a huge selection of standard motors—plus our ability to quickly and cost-effectively modify leads, windings, stack lengths and more—you can choose an exact-fit frameless motor that provides simple installation, long life and the highest performance in the most compact space.

Get a Quote

Product available worldwide

Differentiate Your Machine

Embed the motor seamlessly into your machine design, optimizing the footprint and performance of your machine for enhanced quality and increased throughput.

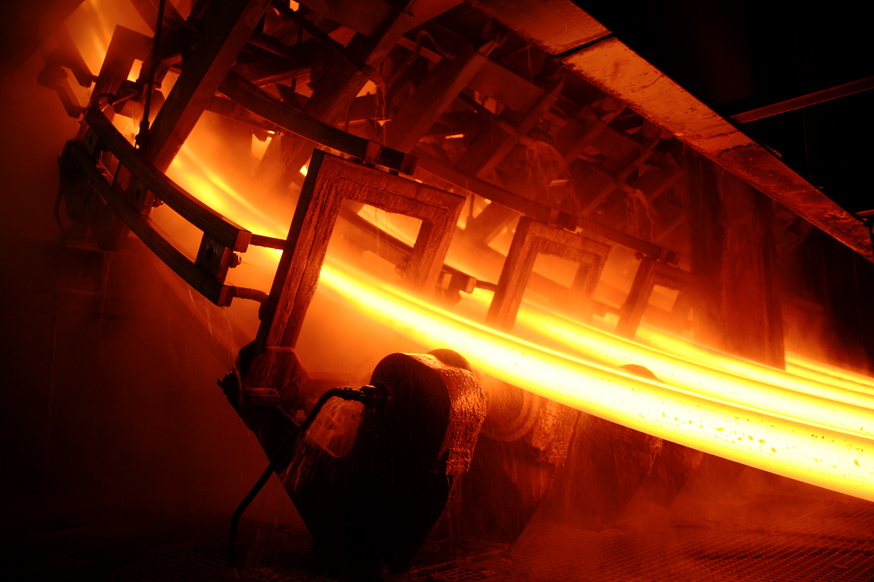

3D Cutting Success Story

Increase Uptime

Reduce the complexity of your machine's design. Directly driving your load by removing failure prone transmissions will decrease the likelihood of costly failures and reduce the need for expensive, preventive maintenance. The end result is a reduced total cost of ownership in your machine.

Start Comparing

Features

Fully encapsulated stator windings
155°C internal winding temperature continuous capability
PTC thermistor (avalanche-type) overload protection
Rare-earth neodymium iron boron magnets
Fail-safe bands over rotor magnets
RoHS compliant
UL and CE agency facilitation
Optimizations include rotor hub dimensions, stack length, diameter, mounting features, windings, insulation, connection type and much more
Optional latching digital Hall effect sensors are pre-aligned and factory-installed with added axial rotor length to achieve proper triggering

Benefits

Direct load connection eliminates maintenance of gearboxes, belts or pulleys
Zero backlash and compliance provides more responsive system performance
Eliminates coupling devices, reducing overall machine size
Embedded motor enables compact machine design, helps protect your intellectual property
Huge selection of standard motors and co-engineered modifications for an exact fit, without the time, expense and risk of a fully customized motor
Modify any standard product’s characteristics – mechanical dimensions, electrical options and connections, thermal and winding optimization for acceleration or deceleration, torque, speed, power, smoothness, and more – to meet your specific needs.

Get a Quote

Specifications

KBM(S) Frames	Outside Diameter	Through Bore	Continuous Stall Torque	Peak Stall Torque	Continuous Output KW
"Servo" Form Factor
KBM(S)-10	59.96 mm (2.95 in)	16.01 mm (.63 in)	.49 - 1.45 Nm	1.17 - 4.91 Nm	0.55 - 0.910 KW
KBM(S)-14	74.9 6mm (2.95 in)	20.01 mm (.79 in)	1.22 - 2.92 Nm	3.28 - 10.50 Nm	0.58 - 1.23 KW
KBM(S)-17	84.96 mm (3.34 in)	30.01 mm (1.18 in)	2.06 - 6.20 Nm	5.95 - 24.00 Nm	0.715 - 1.55 KW
KBM(S)-25	109.96 mm (4.33 in)	50.01 mm (1.97 in)	4.85 - 11.1 Nm	14.4 - 54.8 Nm	0.73 - 3.255 KW
KBM(S)-35	139.96 mm (5.51 in)	65.01 mm (2.56 in)	12.4 - 25.9 Nm	40.8 - 93.0 Nm	2.75 - 5.75 KW
KBM(S)-45	189.96 mm (7.48 in)	85.02 mm (3.35 in)	29.7 - 54.6 Nm	119 - 218 Nm	4.525 - 7.670 KW
"Torquer" Form Factor
KBM(S)-43	159.78 mm (6.29 in)	76.28 mm (3.00 in)	6.11 - 44.2 Nm	18.0 - 153 Nm	1.23 - 2.875 KW
KBM(S)-57	202.90 mm (7.99 in)	104.17 mm (4.10 in)	18.8 - 109 Nm	60 - 441 Nm	2.31 - 3.00 KW
KBM(S)-60	229.85 mm (9.05 in)	105.05 mm (4.14 in)	29.4 - 154 Nm	69.1 - 393 Nm	2.96 - 8.42 KW
KBM(S)-79	259.63 mm (10.22 in)	152.43 mm (6.00 in)	43.5 - 222 Nm	152 - 1075 Nm	2.585 - 3.75 KW
KBM(S)-88	331.46 mm (13.05 in)	155.01 mm (6.10 in)	102 - 545 Nm	197 - 1200 Nm	3.87 - 16.0 KW
KBM(S)-118	361.11 mm (14.22 in)	225.04 mm (8.86 in)	172 - 672 Nm	498 - 2400 Nm	7.78 - 19.85 KW
KBM(S)-163	605.0 mm (23.82 in)	315.50 mm (12.42 in)	764 - 1329 Nm	1966 - 3932 Nm	17.3 - 20.1 KW
KBM(S)-260	850.0 mm (33.46 in)	557.85 mm (21.96 in)	1932 - 3445 Nm	6494 - 12812 Nm	13.7 - 18.5 KW

Selection Guide Design Tools

Modification Is Our Standard

We understand that commercial off-the-shelf motors can’t meet every design and performance demand. That’s why we offer thousands of standard modifications.

Installation Features	Standard Modifications
Rotor hub geometry	Round, hollow, flanged, keyway, flat Thru-bores from 5 mm (0.2 in.) up to published maximum (refer to outline drawing)
Mounting	Customer-specified bolt-hole diameter and circumferential pattern
Lead length	Base model: 152 mm (6 in.) min. Customer-specified: 150 mm (5.9 in.) to 1200 mm (47 in.)
Lead colors	Base model: red, white, black Other colors, customer-specified
Thermal sensor	PTC or linear thermistor-type devices

Speed/Torque Capabilities	Standard Modifications
Winding gauges	Wide winding range available (includes lead wire change)
Stack lengths	3-5 stack lengths available depending on frame size

We Can Also Fully Customize

Don’t see what you need? We’ll work with you to customize a perfect fit for your application, with rapid prototyping and ramp-up to full-rate production. Get in touch and let us know what you are looking for.

Application Form

Direct Drive Rotary Product Selector

Compare Products

X Close

Your browser does not fully support all the features of this page. Consider upgrading for a better experience.

Mozilla Firefox

Google Chrome

Microsoft Edge

Opera X

Get your product details

Fill out this short form

to compare products

-OR-

Login / Register

to gain access to Kollmorgen content

First Name *

Last Name *

Company *

Email *

Phone *

Country *

Country Other...

Newsletter *

Yes, I would like to receive the Kollmorgen newsletter

No, I would not like to receive the Kollmorgen newsletter

Privacy *

I have read and understood the data privacy statement

Privacy Statement - By sending us your contact details you agree that your personal data/user behavior can be electronically stored and processed. If you no longer wish to receive the enewsletter, you can unsubscribe at any time.

Save Information

Store my information for later

Design Tools

Product Selectors

Enter your performance and sizing requirements to find the right Kollmorgen products for your application.

Learn More >>

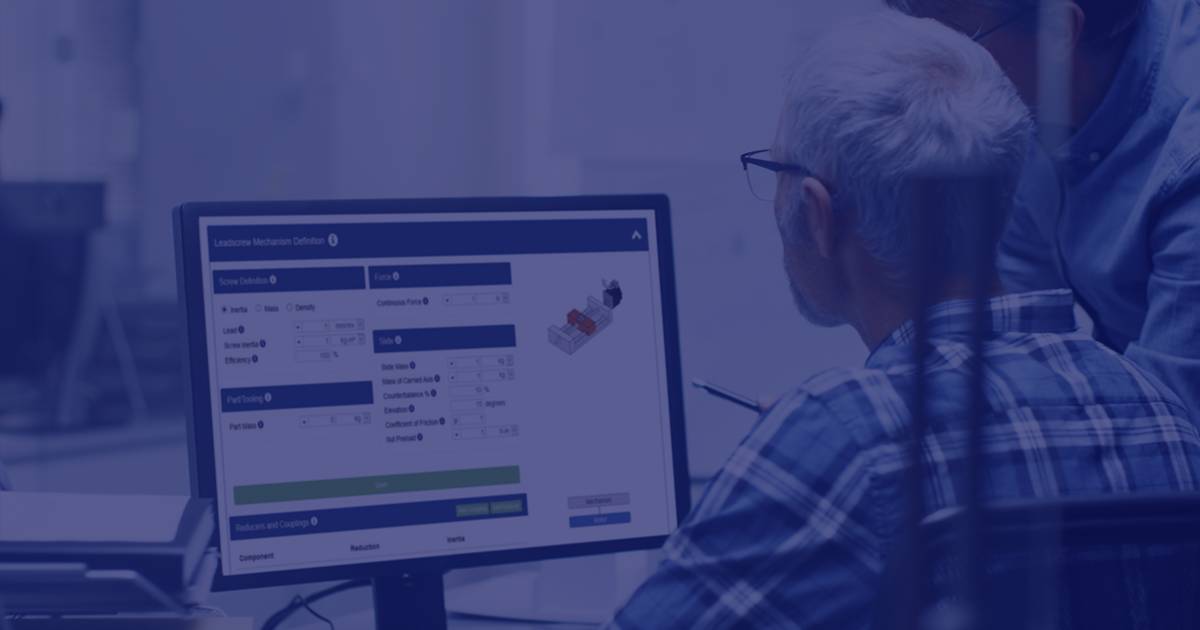

Motioneering
