Direct Drive Linear Motors

A Direct Drive Linear (DDL) motor is basically a rotary motor that is laid out flat and directly coupled to the driven load. By eliminating mechanical transmission components, this design delivers exceptional performance, stiffness, dynamic speeds and accelerations, positional accuracy, and throughput. DDL motors also enable compact mechanical assembly, quiet operation, zero maintenance and smooth, error-free motion.

Get a Quote

Product available worldwide

Improve Machine Performance

By directly coupling the load to the motor you will see improved positioning accuracy, speed regulation, and reduced energy usage, all resulting in a higher performing machine.

3d cutting success story

Increase Uptime

Reduce the complexity of your machine's design. Directly driving your load by removing failure prone transmissions will decrease the likelihood of costly failures and reduce the need for expensive preventive maintenance. The end result is a reduced total cost of ownership in your machine.

Start Comparing

Features

Highest rated thrust force per size—ideal for accelerating and moving high masses
Maintains the stiffness required for machining and other process forces
Zero maintenance
No ball screws, gearboxes, rack and pinions, or belts and pulleys
Zero backlash and compliance

High stiffness
High positional accuracy
Compact mechanical assembly
Reduced machine parts count
Very smooth velocity

Get a Quote

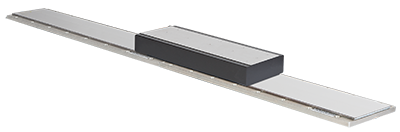

Iron Core Linear Motors

Iron core linear motors have coils wound around silicon steel laminations to maximize the generated force with a single sided magnet way. These motors’ special electromagnetic design delivers the highest rated force per size, a high Km motor constant for low thermal losses, and low cogging forces. The high thrust forces possible with these motors make them ideal for accelerating and moving high masses, and maintaining stiffness during machining and processing.

Iron Core Specifications

Non-Cooled

	Max. Force (N)
	Continuous		Peak
	N	(lbf)	N	(lbf)
IC11	144 to 1197	32.4 to 269	320 to 2135	71.9 to 480
IC22	280 to 2393	62.9 to 538	624 to 4156	140 to 934
IC33	431 to 3590	96.9 to 807	944 to 6291	212 to 1414
IC44	560 to 4786	126 to 1076	1259 to 8388	283 to 1885
ICH11	175 to 1569	39.3 to 352.7	405 to 3372	91 to 758.1
ICH22	342 to 3067	76.9 to 689.5	710 to 5918	159.6 to 1330.4
ICH33	511 to 4016	114.9 to 902.8	1065 to 9545	239.4 to 2145.8
ICH44	600 to 5341	134.9 to 1200.7	1527 to 12726	343.3 to 2860.9
ICD05	57 to 157	12.8 to 35.3	165 to 588	37.1 to 132
ICD10	104 to 315	23.4 to 70.8	330 to 1099	74.2 to 247

Water-Cooled

	Max. Force (N)
	Continuous		Peak
	N	(lbf)	N	(lbf)
IC11	254 to 1712	57.1 to 385	315 to 2102	70.8 to 473
IC22	519 to 3458	117 to 777	630 to 4204	142 to 945
IC33	769 to 5135	173 to 1154	945 to 6306	212 to 1418
IC44	1036 to 6916	233 to 1555	1260 to 8407	283 to 1890

Selection Guide Design Tools

Iron-Less Linear Motors

Iron-less linear motors have no iron or slots for the coils to be wound on. Therefore, these motors have zero cogging, a very light, and absolutely no attractive forces between the coil assembly and the magnet way. These characteristics are ideal for applications requiring very low bearing friction, high acceleration of lighter loads, and for maximizing constant velocity, even at ultra low speeds. The modular magnet ways consist of a double row of magnets to maximize the generated thrust force and to provide a flux return path for the magnetic circuit.

Iron-Less Specifications

	Max. Force (N)
	Continuous		Peak
	N	(lbf)	N	(lbf)
IL06	30.3 to 82.8	6.81 to 18.6	120 to 400	27 to 89.9
IL12	62.1 to 148	14 to 33.3	240 to 800	54 to 180
IL18	92.1 to 211	20.7 to 47.4	360 to 1200	80.9 to 270
IL24	109 to 262	24.5 to 58.9	480 to 1600	108 to 360

Selection Guide Design Tools
