S300 Servo Drive

S300 Series digital brushless servo drives are compact, easy-to-use and extremely versatile. The small footprint saves space in the switchgear cabinet, and with its wide-ranging connectivity options the S300 may be the only drive family you need. These drives work with our best-in-class rotary servo motors and linear positioners to provide a single, high-performance solution for a wide variety of applications.

Get a Quote

Global
Product available worldwide

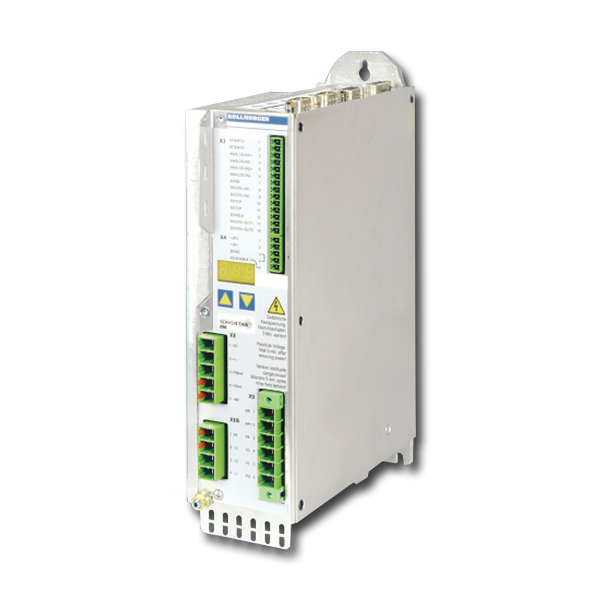

S300 Large image
Industry 4.0 Ready

Features

Features

  • CE, UL, cUL
  • Operation directly from grounded 115 to 480 VAC, 3-phase, 50-60 Hz lines
  • Output current: 1.5 to 10 Amps RMS/phase, continuous
  • With integral AC line filter, all shield connections terminate directly to the amplifier
  • DC-link circuits can be connected in parallel
  • Fully programmable via RS232 interface
  • EtherCAT® and CANopen bus communication onboard
  • Optional SERCOS II, DeviceNet, SynqNet, Profibus, or PROFINET RT
  • Easy setup using a Windows-based graphical interface
  • 230 V type suitable for 200 mm switchgear cabinets
  • Interface integrated for stepper controllers, master-slave operation and electronic gearing
  • Integrated position controller with memory for 300 intelligent positioning tasks, including:
    • Speed profile
    • Register control
    • Jolt limiting
    • Daisy-chained tasks
    • Absolute and relative tasks
    • Several types of reference traverses
  • Motion Control and Soft-PLC integrated
  • Encoder emulation: choose incremental (A quad B, dec./bin.) or absolute (SSI, Gray/bin.)
  • Compatible with a wide range of feedback options:
    • Single Cable Feedback SFD3 and Hiperface DSL
    • Resolver, up to 36 poles
    • ComCoder
    • Incremental or sine encoder with Hall sensor
    • Sine encoder with EnDat/HIPERFACE/BISS
    • Sine encoder without data
    • Incremental encoder A quad B

Benefits

  • Wide power range allows a single drive family to be deployed through-out you entire machine
  • Compact footprint allows use of smaller cabinets, or mounting close to the point of use
  • High performance system designed for increased machine throughput
  • Easy-to-use graphical user interface reduces engineering and support time
  • Reduced overall cost

Get a Quote

Specifications

Technical Data

Rated Data Unit Model
303 306* 310* 341 343* 346*
Rated Supply Voltage v~ 3 x 110 v-10% ... 230 v+10% 3 x 208 v-10% ... 480 v+10%
Rated installed power for S1 operation kva 1.2 2.4 4 1.4 3.3 5
Rated DC link voltage v= 145-360 560–675
Rated output current (RMS value, ± 3 %) / Peak output current (max. 5 s, ± 3 %)
at 1 x 110 v mains voltage A RMS 3 / 5 3 / 5 3 / 5
at 1 x 230 V/240 V mains voltage A RMS 3 / 9 4 / 9 4 / 9
at 3 x 115 v mains voltage A RMS 3.5 / 9 8 / 15 10 / 20
at 3 x 230 v mains voltage A RMS 3 / 9 6 / 15 10 / 20 2 / 4.5 5 / 7.5 6 / 12
at 3 x 400 v mains voltage A RMS - - - 1.5 / 4.5 4 / 7.5 6 / 12
at 3 x 480 v mains voltage A RMS - - - 1.5 / 4.5 3 / 7.5 6 / 12
Continuous power regen circuit (rBint) W 20 50 50 20 50 50
Continuous power regen circuit (rBext) max. kW 0.3 0.3 0.3 0.3 1.0 1.0
Peak power regen circuit (rBext) max. kW 0.75 ... 3 0.75 ... 3 0.75 ... 3 2.1 ... 9 2.1 ... 9 2.1 ... 9

Dimensions

  303 / 306 / 310 341 / 343 / 346
Height 246 mm 246 mm
Width 70 mm 70 mm
Depth without connectors 171 mm 171 mm
Depth with connectors < 200 mm < 235 mm
