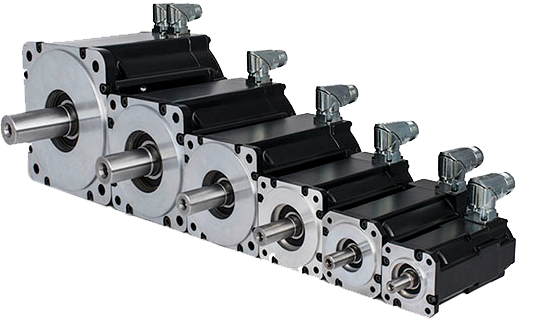

AKM2G Servo Motor

AKM2G represents the latest evolution of the industry-leading AKM motor family

With significant torque increases in the same motor size OEMs can achieve substantial performance improvement without changing the motor mounting or using more machine space.

Designers needing to reduce machine size benefit from AKM2G’s ability to deliver increased power and torque density in a smaller footprint.

Extensive selection of feedback options to match application and performance requirements including options that support functional safety
Shaft, mounting, and connector options
Holding brake and thermal sensor options
Available low voltage models bring the benefits of AKM2G to portable, mobile and battery powered applications where higher efficiency translates to a smaller motor with lower energy demand

Get a Quote

Product available worldwide

Deliver Higher Machine Performance

Higher power and torque density, lower inertia rotor design and Ready for Co-Engineering capability enable you to design your highest performing machine.

Performance Overview

Achieve Your Desired Perfomance in Less Space

The AKM2G drops right into existing machine designs to increase performance, when compared to competing motors, without increasing the size of the motor.

See specs 2D/3D Models

Increase Feedback Performance

Available standard with choice of single cable Kollmorgen Smart Feedback device, HIPERFACE DSL or EnDat 2.2 digital encoders. Dual cable resolver feedback also available standard along with user-specified feedback devices available through co-engineering. Available options support functional safety applications. For low voltage motors a standard commutating encoder option is available.

Standard Voltage Feedback Options Low Voltage Feedback Options

Reduce Cabling

Single hybrid combined power and feedback cables for Kollmorgen Smart Feedback device, HIPERFACE DSL or EnDat 2.2 digital encoders. Dual independent power and resolver feedback cables are also available standard along with other optional configurations. Kollmorgen 2G cables provide the correct design for use in Kollmorgen 2G Systems that incorporate functional safety rated feedback devices.

2G Cables Selection Guide

Features

Standard winding choices for 120 Vac to 480 Vac operation, and low voltage winding choices for 24 to 96 volts (Vdc or Vac) with various speed/torque performance curves
Feedback options to match application requirements and drive selection
- Kollmorgen SFD3
- HIPERFACE DSL (supports functional safety applications)
- EnDat 2.2 (supports functional safety applications)
- Resolver
- Commutating Encoder is available as a standard option for low voltage motors
- Customer-specified feedback devices available through co-engineering
Connector options (as appropriate for feedback type and motor size)
- SpeedTec (standard for single or dual cable designs)
- ytec (dual connector with single insertion at motor for size 2 motors)
System cable options for use with Kollmorgen AKD2G servo drives and other AKD family servo drives
- Single cable SFD3/HIPERFACE DSL/EnDat 2.2
- Two-cable variant for resolver including ytec connector motors and commutating encoder

Standard IP54 rating, IP65 with optional shaft seal. Other optional ratings available through co-engineering
International standard mount with choice of smooth shaft or closed keyway
- Other mount and shaft options available through co-engineering
24VDC mechanical holding brake option
Thermal sensor options for maximum motor protection and servo drive compatibility
Low friction shaft seal options for both wet and dry running applications

Get a Quote

Specifications

AKM2G Performance Data (by frame size)

			AKM2G-2x				AKM2G-3x			AKM2G-4x
Parameter	Sym	Unit	1	2	3	4	1	2	3	1	2	3	4
Continuous Torque at Stall	T_c	Nm	0.65	1.12	1.51	1.85	1.70	2.90	3.86	2.87	5.12	6.98	8.51
Rated Speed	N_rtd	rpm	8000	8000	8000	8000	8000	7600	8000	6000	6000	6000	5400
Rotor Inertia	J_n	kg-cm²	0.0930	0.1549	0.2169	0.2789	0.4264	0.8130	1.200	0.774	1.36	1.95	2.53

			AKM2G-5x				AKM2G-6x				AKM2G-7x
Parameter	Sym	Unit	1	2	3	4	2	3	4	5	1	2	3	4
Continuous Torque at Stall	T_c	Nm	6.83	12.0	16.2	20.1	15.3	21.5	27.0	32.7	23.0	41.1	57.8	72.1
Rated Speed	N_rtd	rpm	6000	5600	5100	4800	5000	4500	4200	3800	4900	3400	3200	3000
Rotor Inertia	J_n	kg-cm²	2.52	4.58	6.64	8.70	9.10	13.0	16.9	20.8	25.9	46.8	67.7	88.6

Values shown are representative of each model. For exact information, refer to the Selection Guide, Installation manual, or Motioneering and/or our curve generator tools.

Standard Voltage Selection Guide Low Voltage Selection Guide Design Tools

AKM2G Dimensional Overview

AKM2G Series	Flange IEC	Length by Stacks					A	Ø B	C	Ø D	Ø E	F	Ø G
AKM2G Series	Flange IEC	1	2	3	4	5	A	Ø B	C	Ø D	Ø E	F	Ø G
AKM2G2x	58	111	130	149	168	-	23.0	11.0	2.50	63.0	5.5	M4 DIN 332	40.0
AKM2G3x	72	121	153	184	-	-	30.0	14.0	2.50	75.0	5.5	M5 DIN 332	60.0
AKM2G4x	88	125	151	177	203	-	40.0	19.0	3.00	100.0	6.6	M6 DIN 332	80.0
AKM2G5x	114	143	172	202	231	-	50.0	24.0	3.00	130.0	9.0	M8 DIN 332	110.0
AKM2G6x	142	-	168	190	212	234	58.0	32.0	3.50	165.0	10.19	M12 DIN 332	130.0
AKM2G7x	192	169	203	237	271	-	80.0	38.0	4.00	215.0	13.4	M12 DIN 332	180.0

All values in millimeters. Nominal dimensions shown for resolver and Smart Feedback SFD3 motors of less than 20 amps continuous. See individual motor schematics for tolerances and complete dimensions including other feedbacks and motors rated greater than 20 amps continuous.
