AKM2G & AKM Low Voltage DC Servo Motors

AKM2G and AKM Low Voltage servo motors provide the same dynamic performance of our standard motors, but with winding optimized for 24–96 Vdc bus input. They are ideal for battery-operated applications such as mobile robots, portable medical equipment, AGVs and more.

Selection Guide

Get a Quote

Product available worldwide

Kollmorgen AKM1 DC Servo Motor Low Voltage Size Comparison_l

Features

Derived from existing AKM2G and AKM electromagnetics, these servo motors incorporate low voltage windings that have been hand-selected by Kollmorgen engineering to deliver optimized performance for axes with low voltage power input requirements.

AKM2G and AKM Low Voltage variants are available with a wide range of configurable options and features—plus OEM-specific co-engineered solutions—as offered in our larger AKM2G and AKM product portfolios.

Features:

AKM2G variants rated for 24–96 Vdc: One design size with stall torque range 1.73 to 3.83 Nm, and motor speeds up to 8000 rpm.
AKM variants rated for 24–48 Vdc: Three design sizes with stall torque range 0.18 to 1.25 Nm, and motor speeds up to 4500 rpm.
CE Compliant / UL-Recognized (U.S & Canada)
Identical motor construction, design features and benefits as base AKM2G and AKM servo motor series.

Get a Quote

Specifications

Values shown are representative of each model. For exact information, refer to the Selection Guide, Installation manual, or Motioneering and/or our curve generator tools.

AKM2G-2x Specifications

Parameter	Sym	Unit	AKM2G-21	AKM2G-22	AKM2G-23	AKM2G-24
Max Continuous Torque (Stall)¹	T_cs	Nm	0.642	1.12	1.50	1.82
Max Peak Torque	Tp	Nm	1.79	3.35	4.73	5.97
Max Rated Speed	N_rtd	rpm	8000	8000	8000	8000
Max Rated Power (speed)	P_rtd	kW	0.452	0.791	0.989	1.085
Rotor Inertia (includes Resolver feedback)²	J_m	kg-cm²	0.093	0.155	0.217	0.279
Weight without brake³	W	kg	1.1	1.4	1.7	2.0

¹Motor winding temperature rise, ∆T = 100° C, at 40° C ambient
²Add parking brake if applicable for total inertia
³Brake motor adds 0.45 kg

AKM2G-3x Specifications

Parameter	Sym	Unit	AKM2G-31	AKM2G-32	AKM2G-33
Max Continuous Torque (Stall)¹	T_cs	Nm	1.73	2.89	3.83
Max Peak Torque	Tp	Nm	6.14	10.7	14.6
Max Rated Speed	N_rtd	rpm	7800	6400	4700
Max Rated Power (speed)	P_rtd	kW	1.15	1.51	1.50
Rotor Inertia (includes Resolver feedback)²	J_m	kg-cm²	0.426	0.813	1.2
Weight without brake³	W	kg	1.8	2.5	3.3

¹Motor winding temperature rise, ∆T = 100° C, at 40° C ambient
²Add parking brake if applicable for total inertia
³Brake motor adds 0.45 kg

AKM2G-4x Specifications

Parameter	Sym	Unit	AKM2G-41	AKM2G-42	AKM2G-43	AKM2G-44
Max Continuous Torque (Stall)¹	T_cs	Nm	2.91	5.17	7.07	8.6
Max Peak Torque	Tp	Nm	7.28	14.5	21.2	27.1
Max Rated Speed	N_rtd	rpm	5000	2800	1900	1600
Max Rated Power (speed)	P_rtd	kW	1.31	1.39	1.32	1.36
Rotor Inertia (includes Resolver feedback)²	J_m	kg-cm²	0.774	1.36	1.95	2.53
Weight without brake³	W	kg	2.90	3.86	4.81	5.76

¹Motor winding temperature rise, ∆T = 100° C, at 40° C ambient
²Add parking brake if applicable for total inertia
³Brake motor adds 0.45 kg

Selection Guide Design Tools

Design Your Motion Solution

Performance Curve Generator Tools

Adjust winding factor, ambient temperature, drive current, and more to generate speed/torque curves for frameless & housed motors.

Learn More >>

Product Selectors

Enter your performance and sizing requirements to find the right Kollmorgen products for your application.

Learn More >>

Motioneering

Are you unsure of the required torque and speed even though you know the application requirements? Use Motioneering to determine the scale of the mechanical project and find the combination of motors and drive systems that match the requirements.

Learn More >>

We Can Also Fully Customize

Don’t see what you need? We’ll work with you to customize a perfect fit for your application, with rapid prototyping and ramp-up to full-rate production. Get in touch and let us know what you are looking for.

Application Form

Success Stories

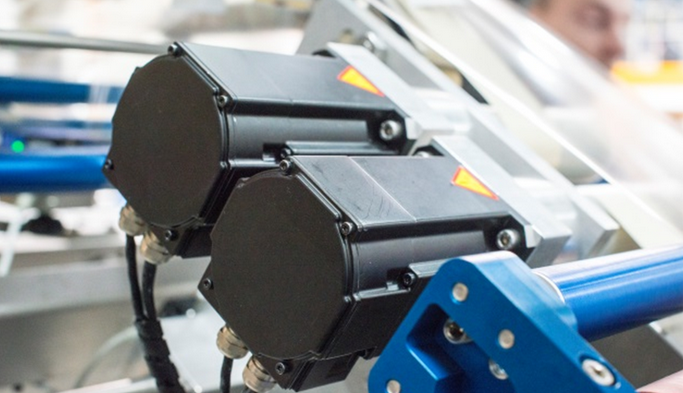

VH Vertical Packaging - New potential with a separate labeler
