Frame Size	Stack Length	Windings	Max BUS (VDC)	Max Stall Tc Nm (lb-in)	Max Tp Nm (lb-in)	Max Rated N	Max Rated Power @ Max BUS kW (Hp)
EKM2	1,2,3,4	C,D,E,F,G	640	1.37 (12.2)	4.77 (42.2)	8000	0.89 (1.19)
EKM3	1,2,3	C,D,E,H	640	2.83 (25.1)	10.2 (90.3)	8000	1.16 (1.56)
EKM4	1,2,3,4	C,E,G,H,J,K	640	5.93 (52.5)	20.3 (180)	6000	1.68 (2.26)
EKM5	1,2,3,4	E,G,K,L,M,N,P	640	14.3 (126)	38.3 (339)	6000	3.82 (5.12)
EKM6	2,3,4,5	G,K,L,M,N,P	640	24.8 (219)	65.0 (576)	6000	6.05 (8.11)
EKM7	2,3,4	K,L,M,P	640	52.8 (467)	143 (1269)	6000	7.64 (10.24)

Title	Language(s)	Date	Size
EKM Series Servo Motors Selection Guide	English	22 Apr 2021	3.67 MB	Copy URL
Kollmorgen Automation and Motion Control	English	14 Jun 2021	15.53 MB	Copy URL

Article
Resolving Servo Feedback Choices	This PowerPoint presentation explains the differences between different types of servo motor feedback devices, including: The differences between absolute and incremental devices. The...
Ingress Protection of Servo Motors	[toc] Sealing is an important design tool used to prolong the life of motors against harsh environments containing dust or liquid contaminants. There are arguably an unlimited number of...
Normen und Richtlinien	[toc] Allgemeines Struktur des Normenwesens am Beispiel der EN ISO 12100 Europäische Richtlinien New Legislative Framework Blue Guide: Leitfaden für die Umsetzung der...
Hall Sensor Alignment Process	Hall Effect Sensors are used to establish proper motor commutation on Brushless Servo motors. To be effective, the Hall Effect Sensors must be properly aligned with the servo motors phases....
EKM Motor Connectors and Corresponding Mating Connectors	Kollmorgen does not offer power or feedback cables for the EKM series servomotors. Typically customer's will build their own cables for applications using the EKM motors. The EKM motor connector...

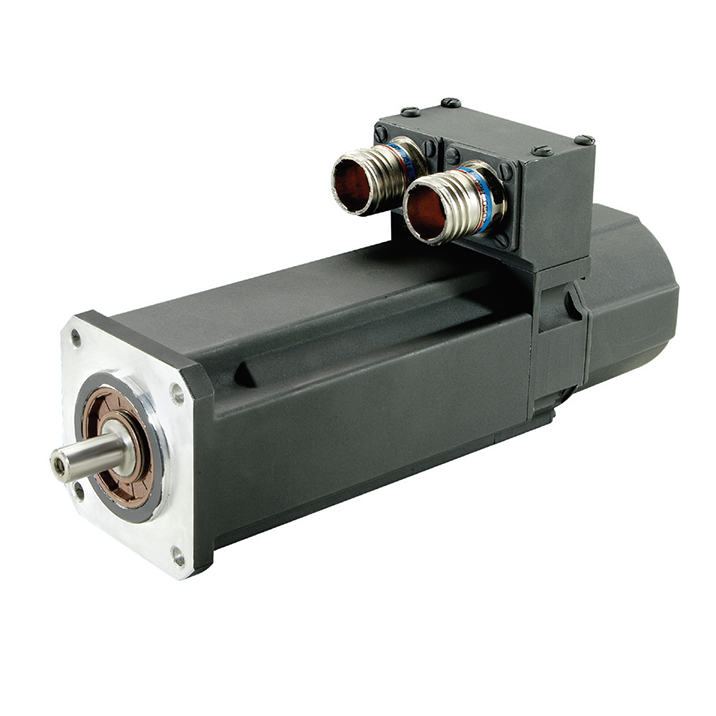

EKM Series Brushless AC Servo Motors
